What Is the Player Global Trap Schema?
A 3D Trap Description Tool
The Global Trap Schema developed by and exclusive to GIS-pax is a smart, interactive tool that makes defining hydrocarbon traps simple and consistent. By standardizing how traps are described, it helps teams speak the same language, compare opportunities with ease, and accelerate smarter exploration decisions.
The technical team at GIS-pax have built a 3D trap description schema that describes every trap type in the modern exploration environment. It is unique, this schema has never existed before, as all trap schemas currently available are 2D not 3D schemas like the real world.
Our observation is that complex traps are described and risked differently in many companies and indeed often evaluated differently in different teams in the same company. This schema provides a common basis for communication and risking of these complex traps.
We provide the Global Trap Schema at NO cost above. You can also access a complete technical presentation on the Schema and an explanation of how it works.
Key Functionality of the Global Trap Schema
- User-friendly – easy to use online interface
- Clear definition of the flank types and elements that make up your complex trap
- Classification of inputs into a simple global trap description scheme
- Direct linkage based on inputs as to which elements you should risk/evaluate
- User controlled options as to how these risk inputs are combined to give an overall risk for the trap
The Player 3D Global Trap Schema

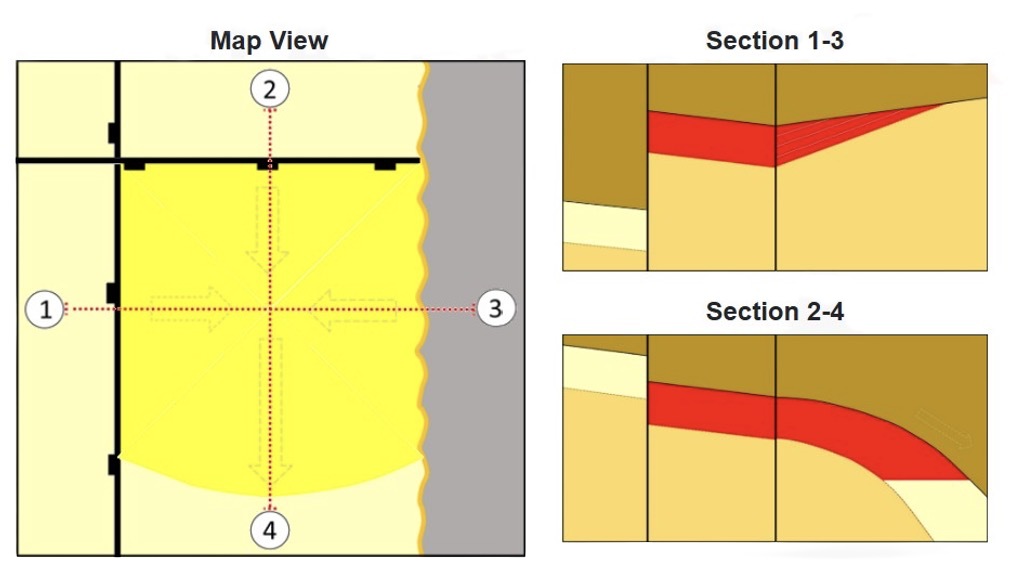

Describes every possible trap type with a map view and two cross-sections to show how the different sealing elements are configured. This enables explorers to accurately define and commumicate what the key trap elements are – and which elements need to be considered in the risking
Trap Classification Schemes

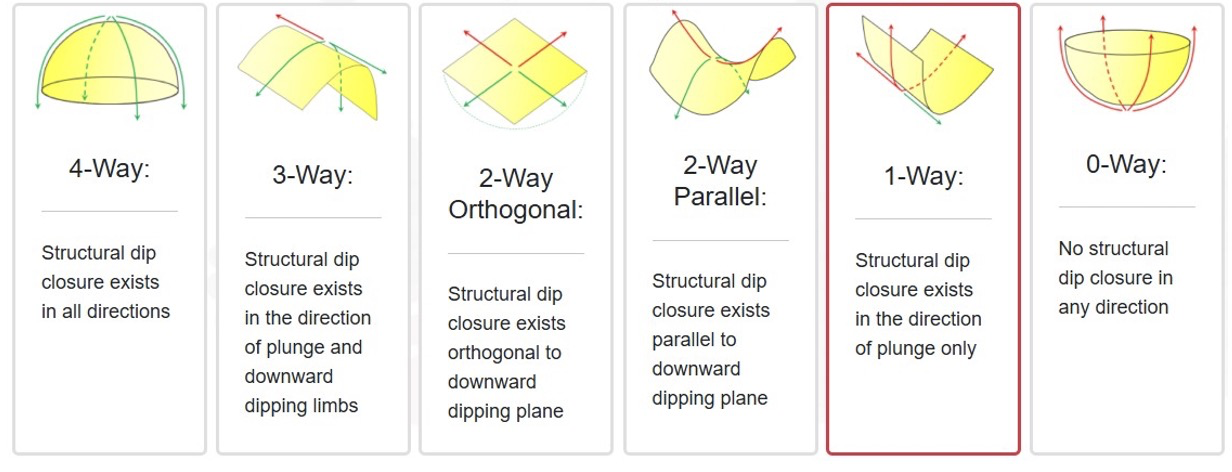

Every defined trap is classified in multiple different ways but one key descriptor is how many dip (or faulted dip) flanks are present and there are only 6 different types in nature. Everyone is familiar with the 4 Way and 3 Way types but there are 4 others that define other families of trap types that have different risk and charge focus profiles.
We have built links to all the major prospect tools in the industry used by the majority of companies including RoseRA (resource assessment) and GeoX.
For more information on our Player Trap Schema software or for a DEMO please click here
